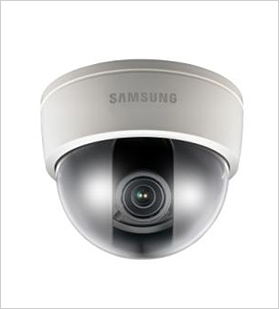

High resolution 37x interior dome camera
SID-370, an interior dome camera, is equipped with the DSP system of the Winner series, which made a new era in the high resolution and minimum illumination technology
|
• Imaging device: 1/4” Super HAD Color CCD, 410,000 pixels
• Total number of pixels 811(H) x 508(V). Number of effective pixels 768(H) x 494(V)
• Imaging method: 2:1 Interlace, imaging frequency 15.734KHz(H), 59.94Hz(V)
• Synchronization method: Internal
• Horizontal resolution: 550 TV lines (Color) / 680 TV lines (B/W)
• Min. illumination: 0.00005Lux@F1.6
• Day & Night function: Auto / Ext / Color / B&W (ICR Filter change)
• S/N비(AGC Off): 50dB, Sens-Up On/Off (X256)
• AGC: Low / Middle / High / Off
• Back light compensation: BLC. Electronic shutter: 1/60~1/120,000SEC
• White balance (Color temperature): ATW / AWC / Manual (1,800°K~10,500°K)
• IRIS mode: Lens combined
• Function control: Korean OSD
• Lens characteristics: Focal length 37x zoom lens f3.5~129.5mm.
|
