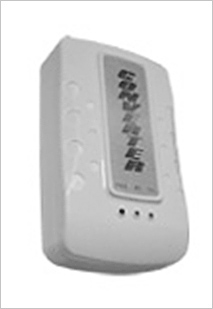

CV-50 |
This module converts the data sent from the ACU and transfers them to a computer. It has an embedded card reader, making it possible to issue cards.
It carries out RS-422/485-based communication with the card reader controller and RS-232-based communication with the operating computer. |
 |
. Encoding : Reader module embedded
. CPU : AT89C2051
. Communication distance : MAX 1.2K
. Frequency : 125Khz, 13.56Mhz
. Standard : 14443 A/B, 15693 Type
. Current consumption : 300mA
. Output : RS-422/ 485 - RS-232 conversion
. Size : 54mm × 100mm × 30mm
. Operating temperature : - 25℃ ∼ + 70℃
. Rated voltage and current: Main board :12 ∼ 16V DC |
|
|
|
|
