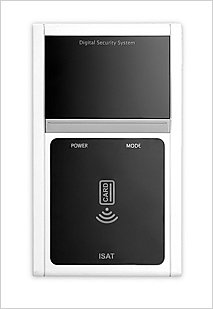

SEN-50 (W)

This module reads the card data and sends them to the ACU.
There are different types of readers with low frequency of 125Khz and high frequency of 13.56Mhz.
There are also ISO14443A/B types and 15693 type based on standards.

. Communication : Wiegand communication. Within 150m from the controller
. Frequency : 125Khz, 13.56Mhz
. Power : 12~16V DC
. Power consumption : 60~100mA
. Keypad : Card reader + Keypad
. Standard : 14443 A/B, 15693 Type
. Sensing distance : About 50~100mm
. Material : ABS / White?
. Operating temperature : -25℃~70℃
. Humidity :95% (Without dew condensation)
. Size :85mm X 144mm X 24mm

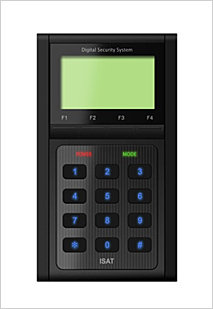

SEN-50 KP / KPL

This module reads the card data and sends them to the ACU.
There are different types of readers with low frequency of 125Khz and high frequency of 13.56Mhz.
There are also ISO14443A/B types and 15693 type based on standards.

This keypad will allow the user to enter the PIN to gain access. The card and the PIN can be used together or individually.

. Communication : Wiegand communication. Within 150m from the controller
. Frequency : 125Khz, 13.56Mhz
. Power : 12~16V DC
. Power consumption : 60~100mA
. Keypad : Card reader + Keypad
. Standard : 14443 A/B, 15693 Type
. Sensing distance : About 50~100mm
. Material : ABS / Black?
. Operating temperature : -25℃~70℃
. Humidity :95% (Without dew condensation)
. Size :85mm X 144mm X 24mm
