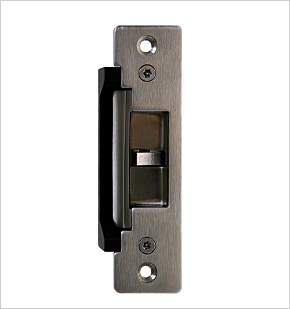

GK-300 M |
. The fail secure and fail safe functions are combined
. 90° swing
. Door open status monitoring
. To be installed on the fire-proof door frame
. Holding force: 2,000Ibs(900Kg)
. ANSI sized
|
 |
. This is a product of Gianny and has been the most widely used product due to its proven high quality
. The fail secure and fail safe functions are combined
. Certified for 1 million activations
Electric specifications
. Holding force : 2,000Ibs(900Kg)
. Monitoring
. Operating ambient temperature : -20℃~+60
. Input voltage : DC12V, DC 24V
. Current consumption : 300mA
. Main body size : 124mm X 36.2mm X 30mm |
|
|
|

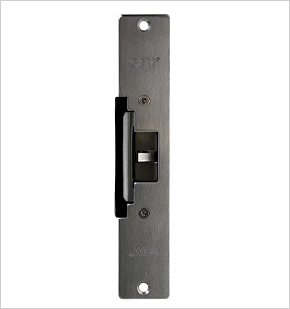

GK-301 M |
. The fail secure and fail safe functions are combined
. 90° swing
. The monitoring function is basically provided
. To be installed on the fire-proof door frame
. Holding force: 2,000Ibs(900Kg)
. ANSI sized
|
|
. This is a product of Gianny and has been the most widely used product due to its proven high quality
. The fail secure and fail safe functions are combined
. Certified for 1 million activations
Electric specifications
. Holding force : 2,000Ibs(900Kg)
. Monitoring
. Operating ambient temperature : -20℃~+60
. Input voltage : DC12V, DC 24V
. Current consumption : 300mA
. Main body size : 202mmx36.5mmx33mm |
|
|
|
|
|
